Virtana Service Observability agent on Kubernetes

The Virtana Service Observability agent on Kubernetes collects key cluster metrics from kube-apiserver and then streams them directly to Virtana Service Observability. The agent sends both metric and model data for pods, containers, nodes, namespaces, and the cluster itself.

You can view the metric data in dashboards or in Smart View. After installing the agent, you can customize the provided Kubernetes About dashboards for your purposes.

The Virtana Service Observability agent on Kubernetes requires a metrics-server. You install the agent in a cluster and Kubernetes schedules the agent in its own pod on one node. Your cluster size determines how much RAM the agent consumes.

The agent uses incremental change notifications to collect data, so it receives updates any time a monitored property changes. The agent sends a batch of metric data to Virtana Service Observability every 60 seconds and sends a batch of model data when the model data changes.

Kubernetes model data

Virtana Service Observability uses the data collected by the Virtana Service Observability agent on Kubernetes to create separate entities for each unique node, pod, container, and namespace in a cluster, and one entity for the cluster itself. To find a cluster in a dashboard scope query or Smart View query, enter the cluster name that you specified when you deployed the agent.

Modeled entities include:

k8s.cluster
k8s.container
k8s.deployment
k8s.initcontainer
k8s.namespace
k8s.node
k8s.pod
k8s.service
k8s.statefulset

Entity relationships

The model data that the Virtana Service Observability agent on Kubernetes sends to Virtana Service Observability includes entity relationships. The following diagram illustrates the relationships:

The arrows show which objects affect other objects. The relationships are used to populate the About Smart View in Smart View.

The following list replicates the diagram in text:

Nodes affect pods and the cluster.
The cluster affects namespaces.
Namespaces and containers affect pods.

Kubernetes metric data

You can configure many of the metrics that Virtana Service Observability collects for Kubernetes as tiles in Dashboards. All metrics are the gauge metric type.

Cluster metrics

Metric	Units	Description
`k8s.cluster.allocatable.cpu.ms`	millisecond	Sum of all the allocatable CPU for the nodes in the Kubernetes cluster.
`k8s.cluster.allocatable.memory.bytes`	byte	Sum of all the allocatable memory for the nodes in the Kubernetes cluster.
`k8s.cluster.capacity.cpu.ms`	millisecond	Sum of all the capacity CPU for the nodes in the kubernetes cluster.
`k8s.cluster.capacity.memory.bytes`	byte	Sum of all the capacity memory for the nodes in the kubernetes cluster.
`k8s.cluster.containers.total`	integer	Total number of containers in the Kubernetes cluster.
`k8s.cluster.cpu.ms`	millisecond	Total CPU milliseconds used by all containers in the Kubernetes cluster.
`k8s.cluster.limits.cpu.ms`	millisecond	Sum of all the container CPU limits in the kubernetes cluster.
`k8s.cluster.limits.memory.bytes`	byte	Sum of all the container memory limits in the kubernetes cluster.
`k8s.cluster.memory.bytes`	byte	Total memory bytes used by all containers in the Kubernetes cluster.
`k8s.cluster.nodes.total`	integer	Total number of nodes in the Kubernetes cluster.
`k8s.cluster.pods.total`	integer	Total number of pods in the Kubernetes cluster.
`k8s.cluster.requests.cpu.ms`	millisecond	Sum of all the container CPU requests in the kubernetes cluster.
`k8s.cluster.requests.memory.bytes`	byte	Sum of all the container memory requests in the kubernetes cluster.
`k8s.cluster.unhandledevents.total.sincestart`	integer	Total number of unhandled events.

Node metrics

Metric	Units	Description
`k8s.node.allocatable.cpu.ms`	millisecond	Allocatable CPU for the kubernetes node.
`k8s.node.allocatable.memory.bytes`	byte	Allocatable memory for the kubernetes node.
`k8s.node.capacity.cpu.ms`	millisecond	CPU Capacity for the kubernetes node.
`k8s.node.capacity.memory.bytes`	byte	Memory Capacity for the kubernetes node.
`k8s.node.cpu.ms`	millisecond	CPU milliseconds used by the Kubernetes node.
`k8s.node.memory.bytes`	byte	Memory bytes used by the Kubernetes node.
`k8s.node.cpu.ms`	millisecond	CPU milliseconds used by the Kubernetes node.
`k8s.node.memory.bytes`	byte	Memory bytes used by the Kubernetes node.

Namespace metrics

Metric	Units	Description
`k8s.namespace.containers.total`	integer	Total number of containers in the Kubernetes namespace.
`k8s.`namespace.cpu.ms	millisecond	Total CPU milliseconds used by all containers in the Kubernetes namespace.
`k8s.namespace.memory.bytes`	byte	Total memory bytes used by all containers in the Kubernetes namespace.
`k8s.namespace.pods.total`	integer	Total number of pods in the Kubernetes namespace.

Deployment metrics

Metric	Units	Description
`k8s.deployment.generation.observed`	generation	Most recent generation observed for the Kubernetes deployment.
`k8s.deployment.generation`	generation	Current generation for the Kubernetes deployment.
`k8s.deployment.replicas.available`	integer	Number of available replicated pods for the Kubernetes deployment.
`k8s.deployment.replicas.desired`	integer	Number of desired replicated pods for the Kubernetes deployment.
`k8s.deployment.replicas.ready`	integer	Number of ready replicated pods for the Kubernetes deployment.
`k8s.deployment.replicas.rollingupdate.max.surge`	integer	Maximum number of replicated pods that can be scheduled above the desired number during a rolling update of the Kubernetes deployment.
`k8s.deployment.replicas.rollingupdate.max.unavailable`	integer	Maximum number of unavailable replicated pods during a rolling update of the Kubernetes deployment.
`k8s.deployment.replicas.unavailable`	integer	Number of unavailable replicated pods for the Kubernetes deployment.
`k8s.deployment.replicas.updated`	integer	Number of updated replicated pods for the Kubernetes deployment.
`k8s.deployment.replicas`	integer	Number of replicated pods for the Kubernetes deployment.

Pod metrics

Metric	Units	Description
`k8s.pod.containers.total`	integer	Total number of containers in the Kubernetes pod.
`k8s.pod.cpu.ms`	millisecond	Total CPU milliseconds used by all containers in the Kubernetes pod.
`k8s.pod.limits.cpu.ms`	millisecond	CPU limit for the Kubernetes pod.
`k8s.pod.limits.memory.bytes`	byte	Memory limit for the Kubernetes pod.
`k8s.pod.memory.bytes`	byte	Total memory bytes used by all containers in the Kubernetes pod.
`k8s.pod.overhead.cpu.cores`	core	Pod overhead with respect to CPU cores associated with running a pod.
`k8s.pod.overhead.memory.bytes`	byte	Pod overhead with respect to memory associated with running a pod.
`k8s.pod.requests.cpu.ms`	millisecond	CPU requested for the Kubernetes pod.
`k8s.pod.requests.memory.bytes`	byte	Memory requested for the Kubernetes pod.

Statefulset metrics

Metric	Units	Description
`k8s.statefulset.collisions`	integer	Number of hash collisions from the Kubernetes statefulset.
`k8s.statefulset.generation.observed`	generation	Most recent generation observed for the Kubernetes statefulset.
`k8s.statefulset.generation`	generation	Current generation for the Kubernetes statefulset.
`k8s.statefulset.replicas.available`	integer	Number of available replicated pods for the Kubernetes statefulset.
`k8s.statefulset.replicas.current`	integer	Number of replicated pods for the current revision of Kubernetes statefulset.
`k8s.statefulset.replicas.ready`	integer	Number of ready replicated pods for the Kubernetes statefulset.
`k8s.statefulset.replicas.updated`	integer	Number of updated replicated pods for the Kubernetes statefulset.
`k8s.statefulset.replicas`	integer	Number of replicated pods for the Kubernetes statefulset.

Container metrics

Metric	Units	Description
`k8s.container.cpu.ms`	millisecond	CPU milliseconds used by the Kubernetes container.
`k8s.container.limits.cpu.ms`	millisecond	CPU limit for the Kubernetes container.
`k8s.container.limits.memory.bytes`	byte	Memory limit for the Kubernetes container.
`k8s.container.memory.bytes`	byte	Memory bytes used by the Kubernetes container.
`k8s.container.requests.cpu.ms`	millisecond	CPU requested for the Kubernetes container.
`k8s.container.requests.memory.bytes`	byte	Memory requested for the Kubernetes container.
`k8s.container.status.restarts.total`	integer	Number of restarts for the Kubernetes container.

Initcontainer metrics

Metric	Units	Description
`k8s.initcontainer.limits.cpu.ms`	millisecond	CPU limit for Kubernetes init container.
`k8s.initcontainer.limits.memory.bytes`	byte	Memory limit for Kubernetes init container.
`k8s.initcontainer.requests.cpu.ms`	millisecond	CPU requested for Kubernetes init container.
`k8s.initcontainer.requests.memory.bytes`	byte	Memory requested for Kubernetes init container.
`k8s.initcontainer.status.restarts.total`	integer	Number of restarts for the Kubernetes init container.

Installing the Virtana Service Observability agent on Kubernetes

To connect a Kubernetes cluster to Virtana Service Observability, you can install an agent in your cluster. The agent uses a YAML file for configuration settings.

You can install the Virtana Service Observability agent on Kubernetes by either using a Helm chart or directly using the kubectl command. In general, Virtana recommends using the Helm package manager to install the agent. More advanced users might choose the kubectl CLI.

Before installing the agent, you need:

The name of the Kubernetes cluster that you want to connect to.
A Virtana Service Observability API key for authentication
The correct Virtana Service Observability API endpoint for your environment.

The Virtana Service Observability agent on Kubernetes supports Kubernetes version 1.8 and higher. It requires the metrics-server.

Install the agent using Helm

To install the Virtana Service Observability agent on Kubernetes using Helm, make the customizations specified in Step 3 before installing the agent.

Before installing the agent, you need:

A Virtana Service Observability API key
Helm 3 or a higher stable release.
Carefully consider the zenoss.clusterName before installation. Your selected zenoss.clusterName is used as the source in Virtana Service Observability. As a best practice, use the name of the cluster in which this agent is being installed.
- If you didn't use the actual name of the cluster, then specify it using the zenoss.actualClusterName parameter. If you have already installed the agent, you can run the Helm update command to set it.

Important

You must have an internet connection from the target cluster to Docker Hub so you can download the agent image.

Add the Virtana Service Observability chart repository to Helm. This repository contains the Helm chart for the Virtana Service Observability agent on Kubernetes. Run the following command:
```
helm repo add zenoss https://zenoss.github.io/charts/
```
(Optional) Review the chart parameters that you can specify during installation.
Install the agent. In the following command, make the following customizations:
- Replace MY_RELEASE_NAME with a unique name for this installation of the agent.
- Replace MY_CLUSTER_NAME with the unique name of the target cluster.
- If the cluster name is different, replace MY_ACTUAL_CLUSTER_NAME with the correct cluster name in which the agent is being installed. If you are using Service Observability in the Virtana Platform, the actual name of the Kubernetes cluster is necessary.
- Replace MY_API_KEY with your Authentication keys for Virtana Service Observability API clients.
- Replace MY_API_ENDPOINT with the correct Virtana Service Observability API endpoint for your environment.
```
helm install MY_RELEASE_NAME zenoss/zenoss-agent-kubernetes \
  --set zenoss.clusterName=MY_CLUSTER_NAME \
  --set zenoss.actualClusterName=MY_ACTUAL_CLUSTER_NAME \
  --set zenoss.address=MY_API_ENDPOINT:443 \
  --set zenoss.apiKey=MY_API_KEY ; \

  history -d $(history 1)
```
Note
The history -d command removes the authentication key from your shell history file.

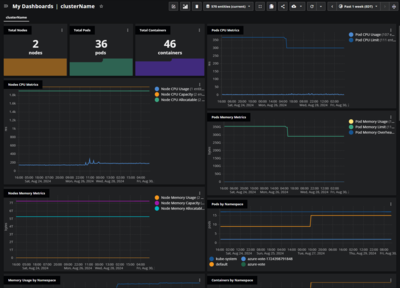

After installing the agent, create a dashboard using the Kubernetes template. In Dashboards, copy the Kubernetes dashboard template, then rename it, adjust the scope, and change the source to the name of the cluster that you chose when installing the agent.

For more information, see Copy a dashboard template or Create a new dashboard.

Important

If you are using Virtana Service Observability (Zenoss) with Virtana Platform, be sure to complete the tasks for deploying Container Observability (CO South) using Helm. To learn more, see Deploy CO South.

Manage the agent using Helm

To view the agent logs, run the following command:

kubectl logs -f deployment/MY_RELEASE_NAME-zenoss-agent-kubernetes

To view the current settings or edit them, run the following command:

helm get values -a MY_RELEASE_NAME
helm upgrade MY_RELEASE_NAME zenoss/zenoss-agent-kubernetes --reuse-values --set key=value

For example, you might want to turn on full debug logging. To do so, your command might look like the following:

helm upgrade MY_RELEASE_NAME zenoss/zenoss-agent-kubernetes --reuse-values --set zenoss.logUpdates=true --set zenoss.agent.logLevel=debug

Note

Allow a minute for the change to activate.

To upgrade an existing installation of the agent without changing its configuration, run the following command:

helm upgrade --reuse-values MY_RELEASE_NAME zenoss/zenoss-agent-kubernetes

Remove the agent using Helm

If you installed the agent using Helm, then you can also uninstall with Helm.

To remove an installation (release) of the agent, run the following command:

helm uninstall MY_RELEASE_NAME

For more information about using Helm, see Helm documentation.

Install the agent using kubectl commands

Kubernetes provides a CLI for communicating with a Kubernetes cluster using the Kubernetes API. If you choose this method to install the agent, it is assumed that you are familiar with the kubectl CLI.

Carefully consider the MY_CLUSTER_NAME before installation. Your selected MY_CLUSTER_NAME is used as the source in Virtana Service Observability.

Important

You must have an internet connection from the target cluster to Docker Hub so you can download the agent image.

Set a cluster context. Configure kubectl to use the correct Kubernetes cluster. In your terminal, run the following command:
```
kubectl config current-context

```
Store your authentication key as a Kubernetes secret. Create a secret for the Virtana Service Observability API key you are using for the target cluster.
In the following command, replace MY_API_KEY with your Authentication keys for Virtana Service Observability API clients:
```
kubectl -n kube-system create secret generic zenoss \
  --from-literal=api-key=MY_API_KEY ; history -d $(history 1)

```
Note
The history -d command removes the authentication key from your shell history file.

Create a configuration file for the agent. For configuration settings, the agent uses a YAML file. In the following YAML file, make the following changes:

Replace MY_CLUSTER_NAME with the unique name of the target cluster in all locations.
Replace MY_API_ENDPOINT with the correct Virtana Service Observability API endpoint for your environment.

# zenoss-agent-kubernetes.yml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: zenoss-agent-kubernetes
  namespace: default
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: system:zenoss-agent-kubernetes
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
rules:
- apiGroups: [""]
  resources: ["namespaces", "nodes", "persistentvolumeclaims", "persistentvolumes", "pods", "services"]
  verbs: ["get", "list", "watch"]
- apiGroups: ["apps"]
  resources: ["deployments", "statefulsets"]
  verbs: ["get", "list", "watch"]
- apiGroups: ["events.k8s.io"]
  resources: ["events"]
  verbs: ["get", "list", "watch"]
- apiGroups: ["metrics.k8s.io"]
  resources: ["nodes", "pods"]
  verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: zenoss-agent-kubernetes
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:zenoss-agent-kubernetes
subjects:
- kind: ServiceAccount
  name: zenoss-agent-kubernetes
  namespace: default
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: zenoss-agent-kubernetes-configs
data:
  agent.yaml: |
    agent:
      name: zdatamon
      source: MY_CLUSTER_NAME
      defaultInterval: 300s
      configurationSource:
        local:
        - name: "default local config"
          directory: "/etc/zdatamon/configs"
    datasinks:
    - name: zenoss
      type: zenoss
      conf:
        address: MY_API_ENDPOINT:443
        apiKey: _ZDM_ENV_ZENOSS_API_KEY
  logconfig.props: |
    default:info
    datasource.kubernetesagent:info
    datasink.zenoss:error
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: zenoss-agent-kubernetes-ds-configs
data:
  kubernetesagent.yaml: |
    apiVersion: v1
    kind: datasource
    name: kubernetesagent
    spec:
      type: kubernetesagent
      datasource:
        interval: 300s
        customClusterName: MY_CLUSTER_NAME
        clusterName: MY_ACTUAL_CLUSTER_NAME
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zenoss-agent-kubernetes
  namespace: default
  labels:
    app: zenoss-agent-kubernetes
spec:
  replicas: 1
  selector:
    matchLabels:
      name: zenoss-agent-kubernetes
  template:
    metadata:
      labels:
        name: zenoss-agent-kubernetes
    spec:
      serviceAccountName: zenoss-agent-kubernetes
      containers:
      - name: zenoss-agent-kubernetes
        image: "zenoss/zdatamon:v1.2.0"
        imagePullPolicy: IfNotPresent
        args:
        - /bin/zdm
        - run
        - --config-file=/etc/zdatamon/agent.yaml
        - --logconfig=/etc/zdatamon/logconfig.props
        - --logconfig-watch
        env:
        - name: K8S_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: K8S_POD
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        - name: ZENOSS_API_KEY
          valueFrom:
            secretKeyRef:
              name: zenoss
              key: api-key
        resources: {}
        volumeMounts:
        - name: zdatamon-configs
          mountPath: /etc/zdatamon
        - name: zdatamon-ds-configs
          mountPath: /etc/zdatamon/configs
      volumes:
      - name: zdatamon-configs
        configMap:
          name: zenoss-agent-kubernetes-configs
      - name: zdatamon-ds-configs
        configMap:
          name: zenoss-agent-kubernetes-ds-configs

Install the agent in the cluster. Run the following command:
```
kubectl apply -f zenoss-agent-kubernetes.yml

```

For more information, see Copy a dashboard template or Create a new dashboard.

Manage the agent using kubectl commands

To view the agent logs, run the following command:

kubectl logs -f deployment zenoss-agent-kubernetes

To update the agent, first edit its configuration file, then apply the file. Kubernetes applies only the changes. Run:

kubectl apply -f zenoss-agent-kubernetes.yml

To remove the agent and all of its resources, run the following command:

kubectl delete -f zenoss-agent-kubernetes.yml

In this section:

Virtana Service Observability agent on Kubernetes

Kubernetes model data

Entity relationships

Kubernetes metric data

Cluster metrics

Node metrics

Namespace metrics

Deployment metrics

Pod metrics

Statefulset metrics

Container metrics

Initcontainer metrics

Installing the Virtana Service Observability agent on Kubernetes

Install the agent using Helm

Important

Note

Important

Manage the agent using Helm

Note

Remove the agent using Helm

Install the agent using kubectl commands

Important

Note

Manage the agent using kubectl commands

Search results
