IBM DB2

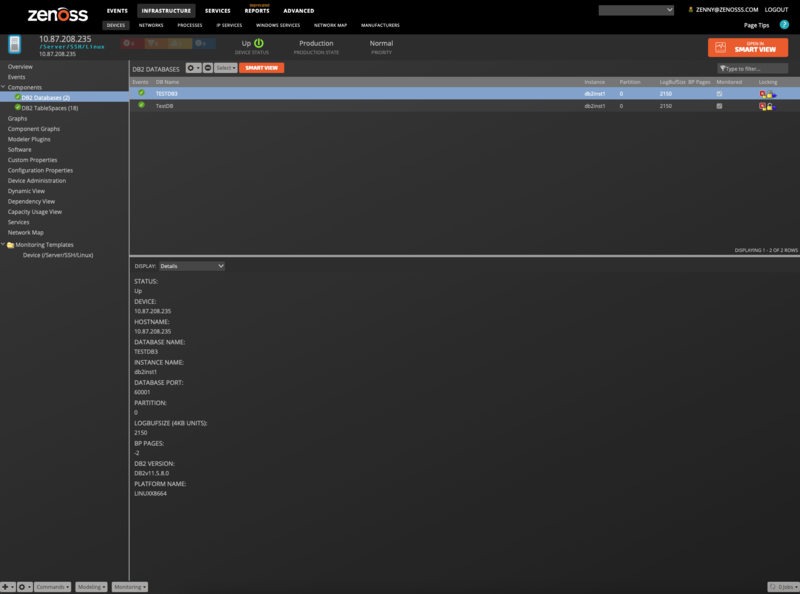

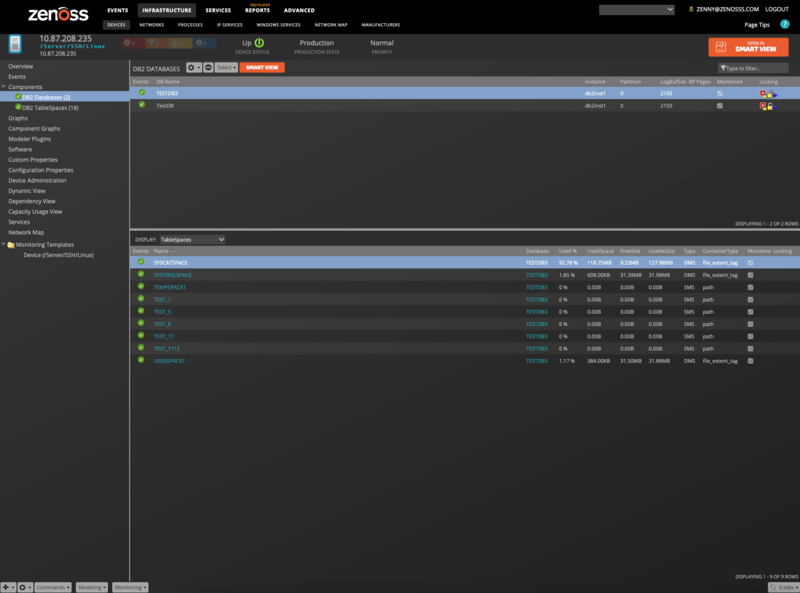

This ZenPack allows for multiple databases per server to be monitored. The Context Display area has the following:

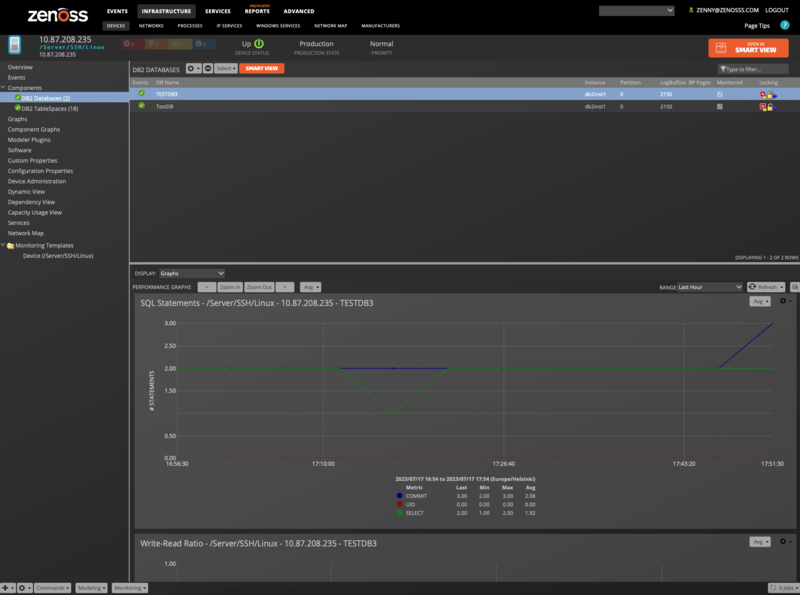

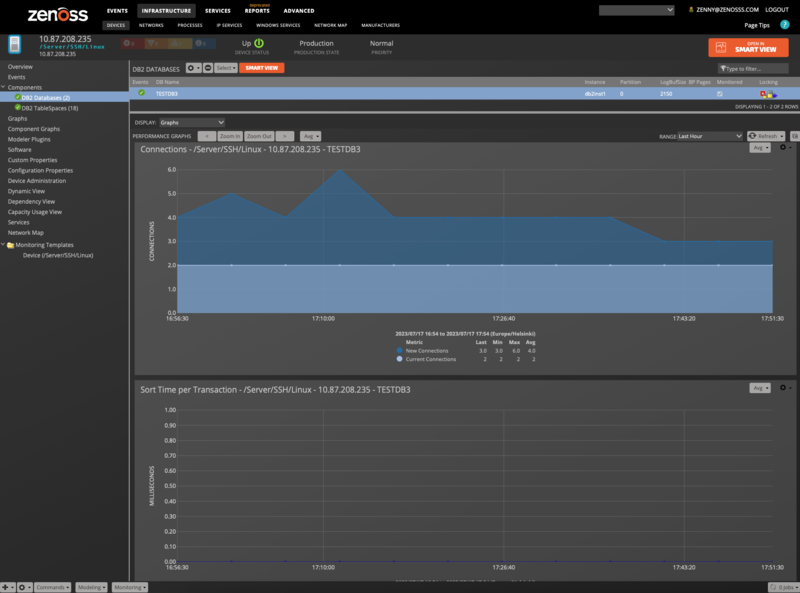

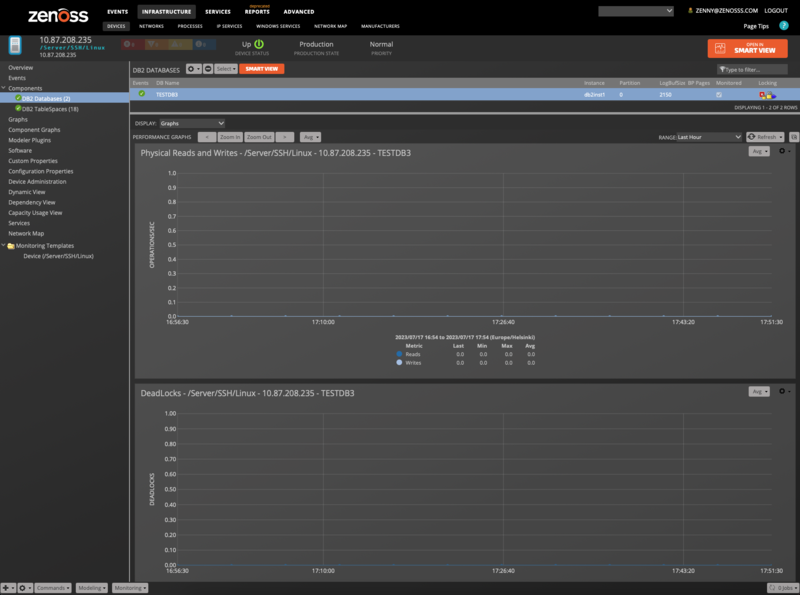

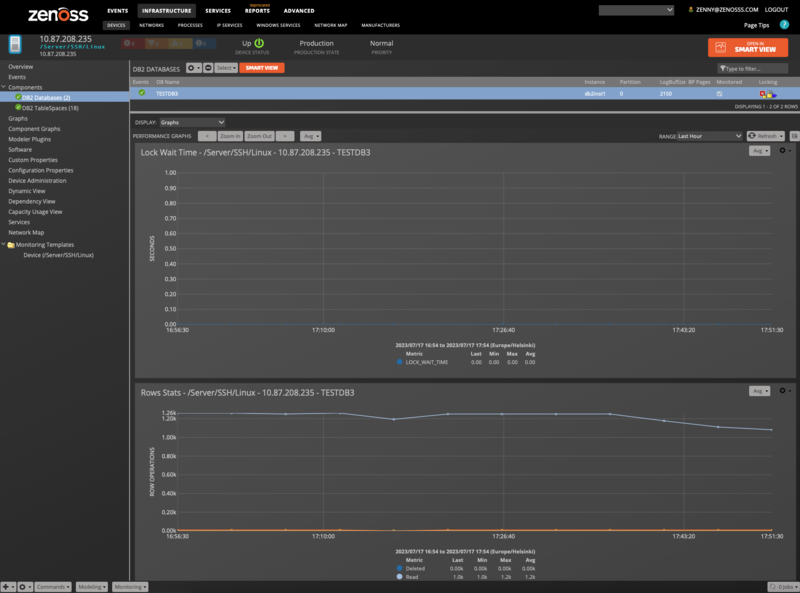

Database support includes the following graphs:

The DB2 server must be configured correctly and granted access in order to allow access to the tables needed for monitoring. These steps are required:

Install the target server as you normally would. Just select the type of server that DB2 will run on (Linux, Solaris, Windows, etc.). The host server should have its base data collection services running as usual in order to monitor its vitals. Make sure to set the zProperty: zCommandCommandTimeout to 120.

You can install the ZenPack egg via the GUI or manually.

To manually install the ZenPack egg, take the following steps:

sudo su - zenoss
zenpack --install ZenPacks.zenoss.DB2-*.egg
zenoss restart

where ZenPacks.zenoss.DB2-*.egg should match your egg version.

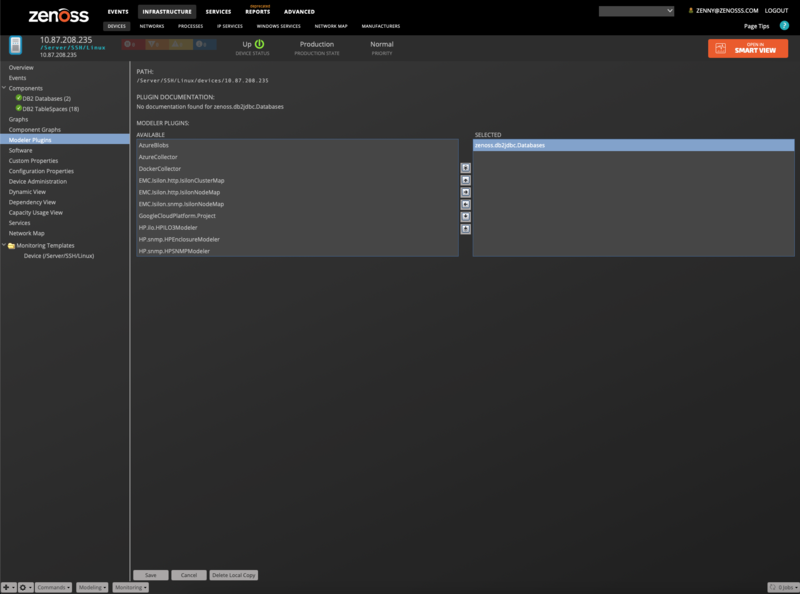

Now you are ready to bind the modeler:

We STRONGLY recommend that you install the same read-only user in your databases so that you don't have to chase down usernames and passwords for your instances. A read-only DB user will also enhance your security and be less of a risk of data corruption in your DB. See the Security section below for details.

You can use the default version of Java or select a custom version. To use a custom version you can set one of the following environment variables in the zenoss account (in order of priority):

You can also add your devices in batch for convenience and automation.

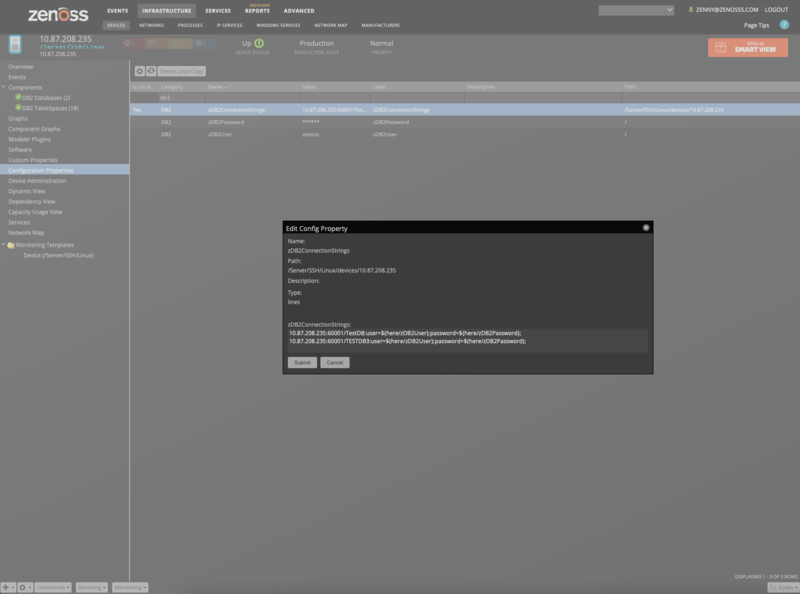

If you want to delete or change a database from the zDB2ConnectionStrings, follow these steps:

To add a device, you simply:

From inside your Linux/Unix system create a user (zenoss) and group (zenoss) as you would any user. You should give that user the least privileges that your security system provides. The user's group identity will be added to DB2 in the next section to give access to the DB.

For each running instance, you must log into that instance account. Then connect to DB2 Instance account. For DB2 10.5 it goes like this:

[db2inst1@mp3:~]: source sqllib/db2profile
[db2inst1@mp3:~]: db2 attach to DB2INST1
[db2inst1@mp3:~]: db2 update dbm cfg using SYSMON_GROUP zenoss
[db2inst1@mp3:~]: db2 detach

You can test the setup with the following:

[db2inst1@mp3:~]: db2 connect to SAMPLE
[db2inst1@mp3:~]: db2 GET DATABASE MANAGER CONFIGURATION | grep SYSMON
 *SYSMON group name      (SYSMON_GROUP) = ZENOSS*

The last line indicates success.

In Infrastructure -> DeviceName you select Configuration Properties and set:

zDB2User: zenoss
zDB2Password: YourSecretPassword

The full ConnectionString format is:

jdbc:db2://host.example.net:Port/DB_NAME:user=USERNAME;password=PASSWORD;
    or optionally without the prefix:
host.example.net:Port/DB_NAME:user=USERNAME;password=PASSWORD;

With our actual values of username, and password:

mp3.zenoss.loc:50000/SAMPLE:user=zenoss;password=zenoss;

We can generify this considerably by using our TALES expressions:

${here/manageIp}:50000/SAMPLE:user=${here/zDB2User};password=${here/DB2Password};

If you use the recommended username and password you would only need to modify Port and DB_NAME for each connection string

${here/manageIp}:50000/SAMPLE:user=${here/zDB2User};password=${here/zDB2Password};
${here/manageIp}:50001/HOLD:user=${here/zDB2User};password=${here/zDB2Password};
${here/manageIp}:50002/DEFECT:user=${here/zDB2User};password=${here/zDB2Password};
${here/manageIp}:50002/RELOAD:user=${here/zDB2User};password=${here/zDB2Password};

Here are the steps to create a call at the database level:

You can now use your new data points to create graphs and thresholds in the standard way.
