Cisco APIC

ZenPacks.zenoss.CiscoAPIC

This ZenPack provides support for monitoring the Cisco Application Centric Infrastructure (ACI) via the Cisco Application Policy Infrastructure Controller (APIC).

Releases

Version 1.3.1

Released: 2026-08-14
Compatible with Virtana Service Observability (formerly Zenoss Cloud), Virtana Service Dynamics 6.9.0
Requires: PythonCollector ZenPack (>=1.3)

Version 1.3.0

Released: 2020-07-02
Compatible with Virtana Service Observability (formerly Zenoss Cloud), Virtana Service Dynamics 6.9.0
Requires: PythonCollector ZenPack (>=1.3)

Features

This ZenPack adds the following features to Virtana.

Initial discovery and continual update of relevant components.
Performance monitoring. Both of statistics and health scores.
Event management. Integration of APIC faults into Virtana event system.
Service impact and root cause analysis. (Requires Virtana Service Dynamics)

Discovery

The following components will be automatically discovered through a controller (APIC).

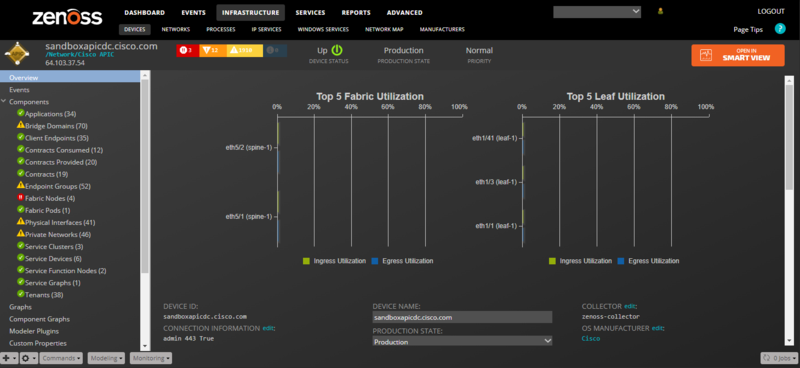

APICs

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Fabric Pods, Tenants

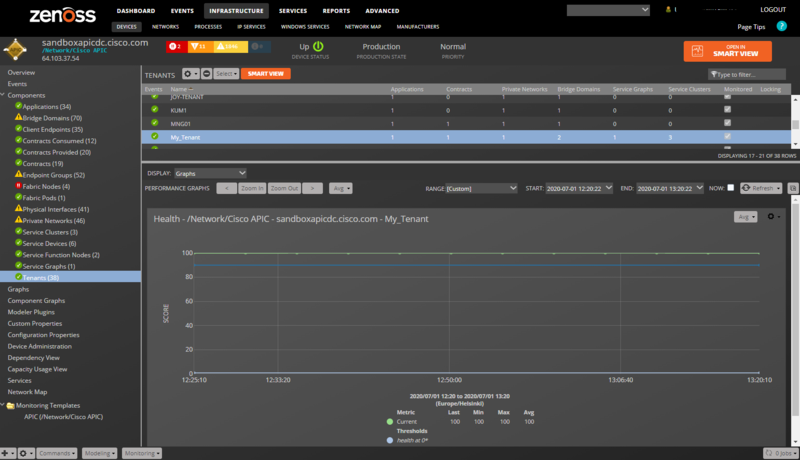

Tenants

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: APIC, Private Networks, Bridge Domains, Contracts, Applications, Service Graphs, Service Clusters

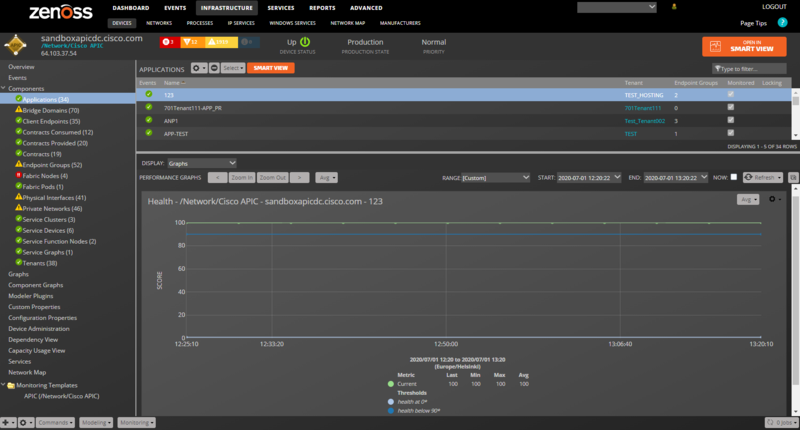

Applications

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Tenant, Endpoint Groups

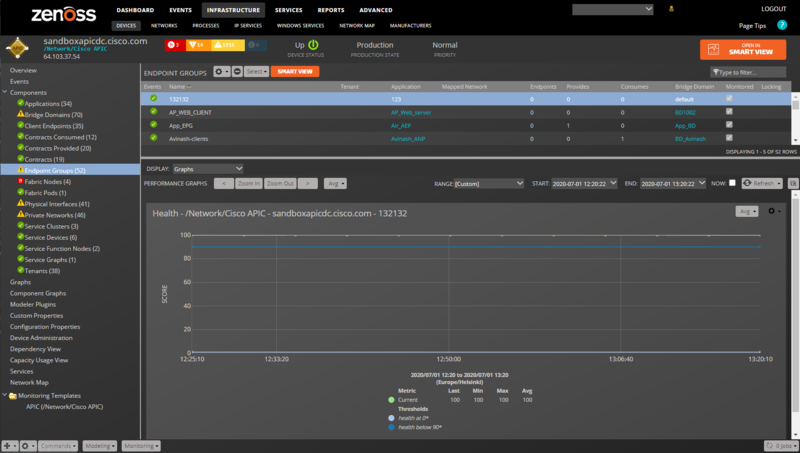

Endpoint Groups

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Application, Bridge Domain, Provided Contracts, Consumed Contracts

Client Endpoints

Properties: Title, ACI Distinguished Name (DN), ACI Object Class, MAC Address, IP Address, Learning Source, Encapsulation
Relationships: Endpoint Group

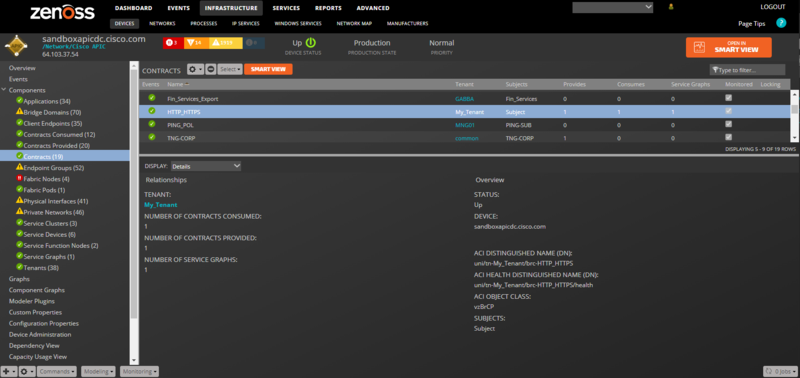

Contracts

Properties: Title, ACI Distinguished Name (DN), ACI Object Class, Subjects
Relationships: Tenant, Provided Contracts, Consumed Contracts, Service Graphs

Provided Contract

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Endpoint Group, Contract

Consumed Contract

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Endpoint Group, Contract

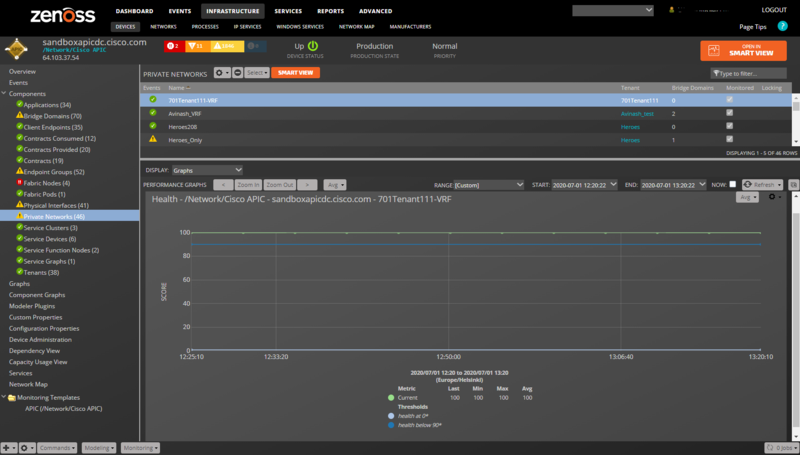

Private Networks

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Tenant, Bridge Domains

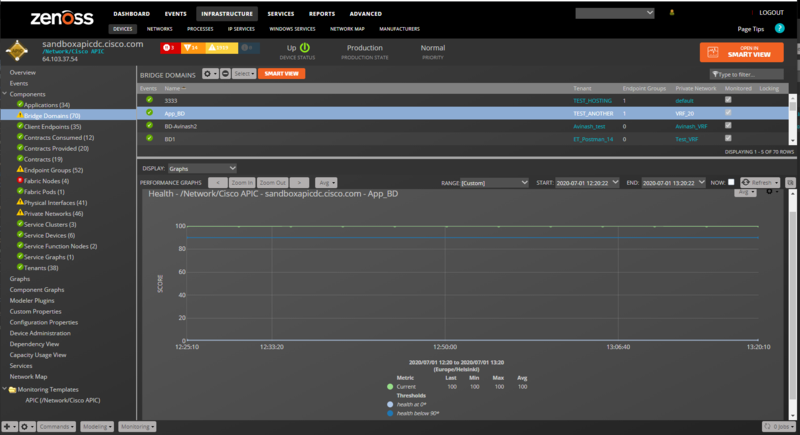

Bridge Domains

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Tenant, Private Network, Endpoint Groups

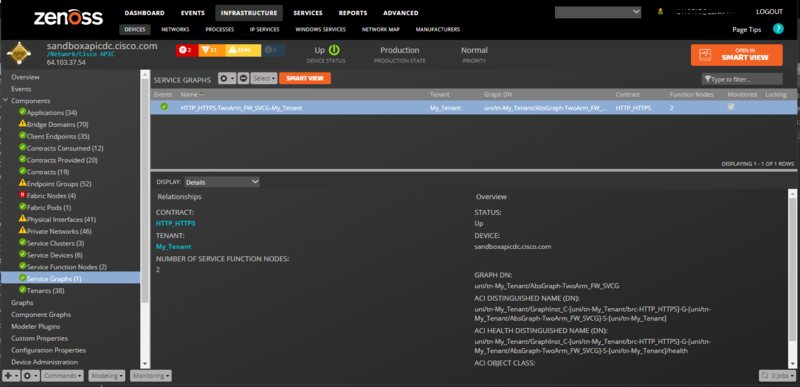

Service Graphs

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Tenant, Service Function Nodes, Contract

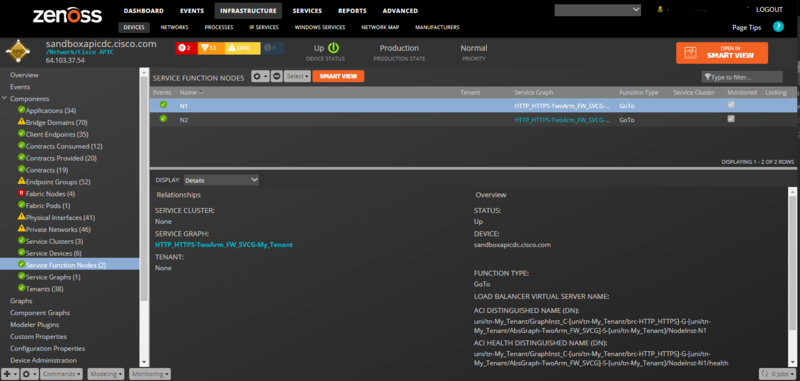

Service Function Nodes:

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Service Graph, Service Cluster

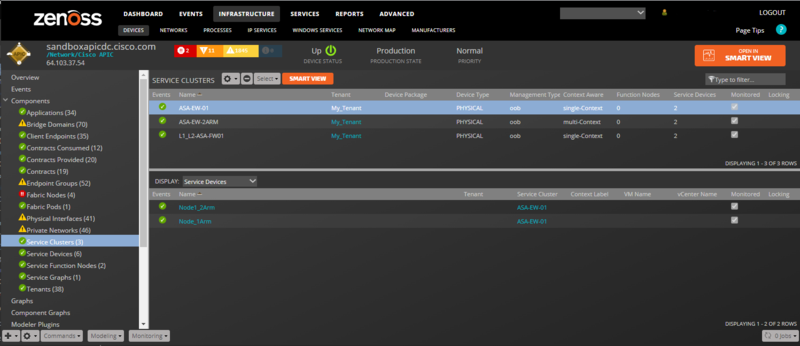

Service Clusters

Properties: Title, ACI Distinguished Name (DN), ACI Object Class, Device Package, Vendor, Model, Version:
Relationships: Tenant, Service Devices, Service Function Nodes

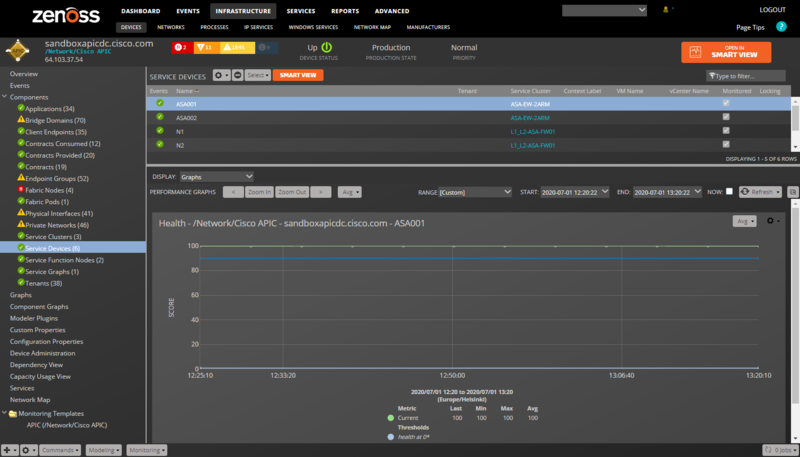

Service Devices

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: Service Cluster

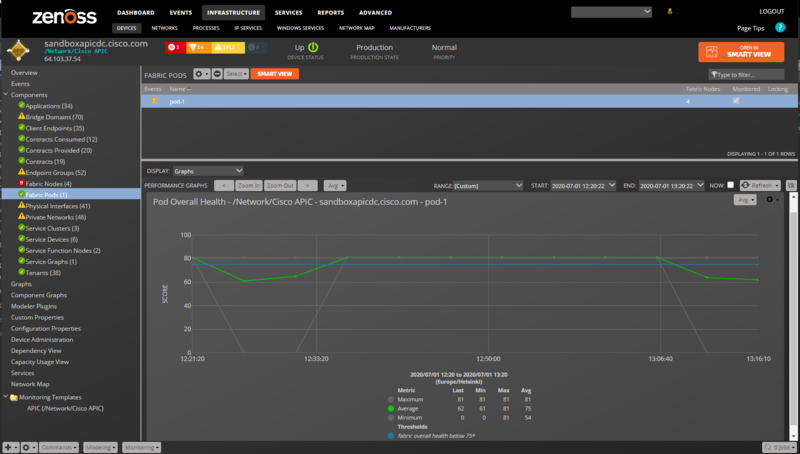

Fabric Pods

Properties: Title, ACI Distinguished Name (DN), ACI Object Class
Relationships: APIC, Fabric Nodes

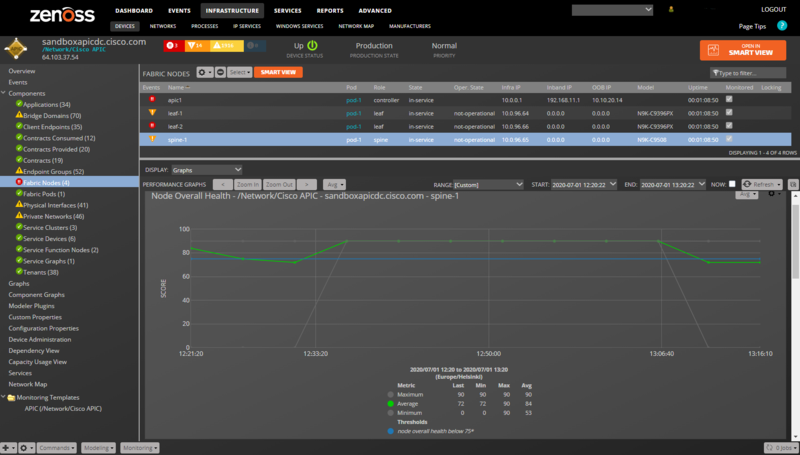

Fabric Nodes

Properties: Title, ACI Distinguished Name (DN), ACI Object Class, Node ID, Role, State, Operational State, Uptime, Infrastructure IP, In-Band Management IP, Out-of-Band Management IP, Fabric ID, Pod ID, Model, Revision, Serial Number, Firmware Version
Relationships: Fabric Pod, Physical Interfaces

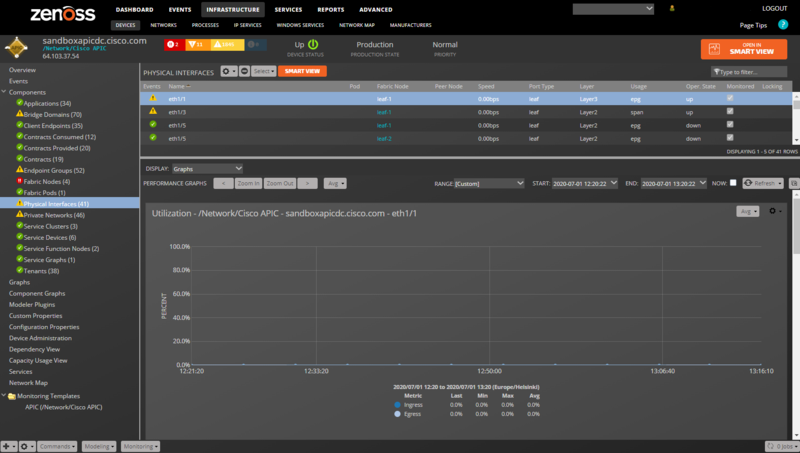

Physical Interfaces

Properties: Title, ACI Distinguished Name (DN), ACI Object Class, Operational State
Relationships: Fabric Node

Performance Monitoring

The following datapoints will be collected every 5 minutes by default. The individual health scores can be configured to collect at a different interval using the zCiscoAPICHealthInterval configuration property. All other statistics are pre-aggregated to 5 minute intervals by the APIC, so collecting on a different interval would lead to inaccurate results. For this reason the collection interval for all other statistics cannot be changed in Virtana.

Tenants (Health Monitoring Template): health_cur: Current Health Score. (percent)

Applications (Health Monitoring Template): health_cur: Current Health Score. (percent)

Endpoint Groups (Health Monitoring Template): health_cur: Current Health Score. (percent)

Private Networks (Health Monitoring Template): health_cur: Current Health Score. (percent)

Bridge Domains (Health Monitoring Template): health_cur: Current Health Score. (percent)

Service Devices (Health Monitoring Template): health_cur: Current Health Score. (percent)

Fabric Pods (FabricPod Monitoring Template): fabricOverallHealth_healthAvg: Fabric Overall Health (5 minute average). (percent): fabricOverallHealth_healthMax: Fabric Overall Health (5 minute maximum). (percent): fabricOverallHealth_healthMin: Fabric Overall Health (5 minute minimum). (percent)

All Fabric Nodes (FabricNode Monitoring Template): topSystem_systemUpTime: Seconds since the node booted. (seconds)

Spine and Leaf Fabric Nodes (FabricSwitch and Health Monitoring Templates): fabricNodeHealth_healthAvg: Node Overall Health (5 minute average). (percent): fabricNodeHealth_healthMax: Node Overall Health (5 minute maximum). (percent): fabricNodeHealth_healthMin: Node Overall Health (5 minute minimum). (percent): health_cur: Current Health Score. (percent)

Physical Interfaces (L1PhysIf and Health Monitoring Templates): eqptIngrTotal_utilAvg: Ingress utilization. (percent): eqptIngrTotal_bytesRate: Ingress bytes rate. (bytes/sec): eqptIngrTotal_pktsRate: Ingress packets rate. (packets/sec): eqptEgrTotal_utilAvg: Egress utilization. (percent): eqptEgrTotal_bytesRate: Egress bytes rate. (bytes/sec): eqptEgrTotal_pktsRate: Egress packets rate. (packets/sec): health_cur: Current Health Score. (percent)

Event Management

Virtana periodically polls the APIC for faults and creates Virtana events when they occur. The APIC fault life-cycle closely matches that of a Virtana event. This means that corresponding Virtana events will automatically clear when their APIC fault counterparts clear.

Note: APIC fault events may reoccur in Virtana if they're close in Virtana, but not cleared on the APIC. For this reason it is recommended that the APIC fault events be acknowledged in Virtana instead of closed until they are actually resolved on the APIC.

Note: Virtana attempts to set the timestamp on fault events to the timestamp the APIC reported their occurrence instead of the time that Virtana collected them. For this reason it is recommended that both your APICs and Virtana servers keep accurate time. Virtana will attempt to determine any time difference between the Virtana collector server and the APIC and adjust event timestamps accordingly.

The following fields will be populated for each event.

Standard Event Fields

device: APIC device in the /Network/Cisco APIC device class.
component: Virtana component related to the fault.
eventKey: APIC distinguished name (DN) for the fault.
eventClassKey: cisco-apic-code where code is the APIC fault code.
eventGroup: cisco-apic-faultInst.
summary: Description or descr for the APIC fault.
severity: Mapped from the APIC severity for the fault using the following table.
- APIC cleared = Virtana Clear
- APIC info = Info
- APIC warning = Warning
- APIC minor = Warning
- APIC major = Error
- APIC critical = Critical
count: Occurrences or occur for the APIC fault.

The following additional fields and potentially more will also be populated for each event. These are the fields native to an APIC fault. If a fault occurs that has other fields, those fields will be added with the same cisco.apic prefix.

Additional APIC Fault Event Details

cisco.apic.ack
cisco.apic.cause
cisco.apic.changeSet
cisco.apic.code
cisco.apic.created
cisco.apic.descr
cisco.apic.dn
cisco.apic.domain
cisco.apic.highestSeverity
cisco.apic.lastTransition
cisco.apic.lc
cisco.apic.occur
cisco.apic.origSeverity
cisco.apic.prevSeverity
cisco.apic.rule
cisco.apic.severity
cisco.apic.subject
cisco.apic.type

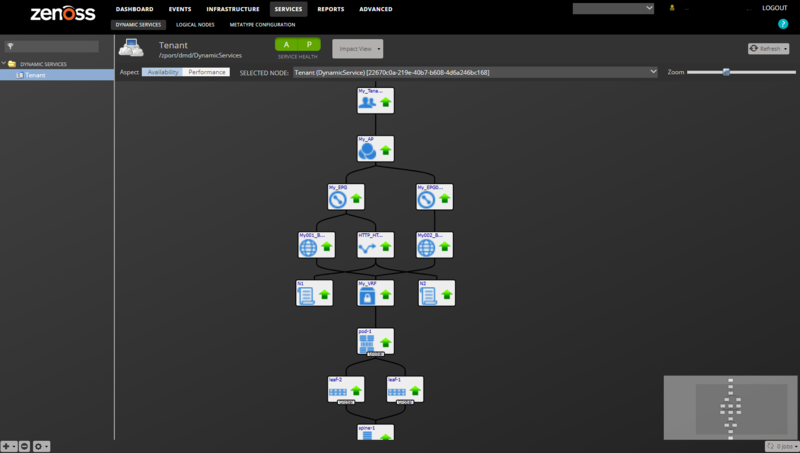

Impact and Root Cause Analysis

When combined with Virtana Service Dynamics, this ZenPack adds built-in service impact and root cause analysis capabilities for services running on the ACI fabric. The service impact relationships shown in the diagram and described below are automatically added and maintained. These will be included in any services that contain one or more of the discovered components listed above.

Impact Relationships between APIC Components

Controller fabric nodes impact controlled spine fabric nodes.
Spine fabric nodes impact connected leaf fabric nodes.
Leaf fabric nodes impact their fabric pod.
Fabric pods impact private networks on the fabric.
Private networks impact associated bridge domains.
Bridge domains impact associated endpoint groups.
Endpoint groups impact their application.
Service graphs impact endpoint groups that consume their associated contract.
Service function nodes impact their service graph.
Service clusters impact their service function node.
Service devices impact their service cluster.
Applications impact their tenant.
Physical interfaces impact connected client endpoints

Impact Relationships with non-APIC Components

Underlying network service devices impact associated APIC service devices.
NetScaler virtual servers impact associated APIC service function nodes.
Server devices impact connected APIC endpoint groups.
Client endpoints impact server devices.
Client endpoints impact network interfaces.
Client endpoints impact vSphere host systems.
Client endpoints impact vSphere virtual machines.
Client endpoints impact physical NICs.
Client endpoints impact virtual NICs.
vSphere dvPortgroups impact associated APIC endpoint groups.
vSphere VMs impact connected APIC endpoint groups.

Most of the impacts described above follow the default policy of a node being in the worst state of the nodes that impact it. For example, a single controller fabric node failure will imply that all controlled switches are failed. In cases like these the default policy is not appropriate and a custom policy will be used instead.

Custom Impact Policies

A fabric pod will be DOWN if 100% of its leaf nodes are DOWN. It will be DEGRADED if 50% or more of the leaf nodes are down, and ATRISK if 2 or more leafs are down.
A leaf node will be DOWN if 100% of its spine nodes are DOWN. It will be DEGRADED if 50% or more of the spine nodes are down, and ATRISK if 2 or more spines are down.
A spine node will be ATRISK if 2 or more controllers are down.

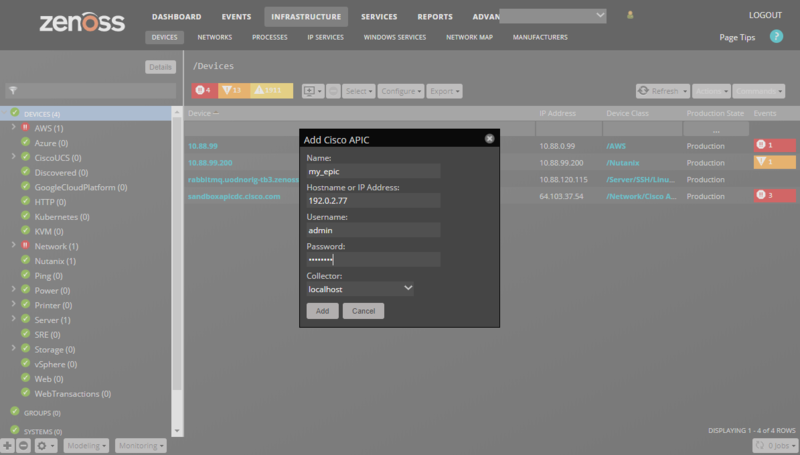

Adding an APIC

Use the following steps to start monitoring an APIC using the web interface.

Navigate to the Infrastructure page.
Choose Add Cisco APIC from the add device button.
Fill out the form.
- Name can be anything you want.
- Hostname or IP Address must be resolvable and accessible from the collector server chosen in the Collector field. See Configuring Management Addresses for more information on what address should be specified.
- Username and Password are the same as what you'd use to login the the APIC's web interface. See Minimum Permissions for more information on the minimum permissions the provided APIC username must have.
Click ADD.

Alternatively you can use zenbatchload to add APICs from the command line. To do this, you must create a file with contents similar to the following. Replace all values in angle brackets with your values minus the brackets. Multiple APICs can be added under the same /Devices/Network/Cisco APIC section.

"/Devices/Network/Cisco APIC"
my-apic setManageIp='192.0.2.77', zCiscoAPICUsername='admin', zCiscoAPICPassword='changeme'

You can then load the endpoint(s) with the following command.

zenbatchload <filename>

Configuring Management Addresses

When adding an APIC to Virtana, you must enter a Hostname or IP Address. This address must be of one of the controller nodes for a fabric. You should not add each controller node as a separate device in Virtana. Virtana manages the entire cluster through one controller node at a time. Adding multiple controller nodes in the same cluster will result in Virtana performing double or even triple monitoring of the same data.

Virtana will automatically discover both the in-band and out-of-band management addresses for each controller node in the cluster on an ongoing basis. If at any point Virtana is unable to communicate with a controller node, it will round-robin through the other controller nodes until it finds one that's reachable. Monitoring will continue through a functioning controller node. This allows Virtana to provide uninterrupted monitoring of the fabric when individual controllers are taken offline for maintenance, or go offline for other reasons.

It is important to configure Virtana appropriately to use the correct management address(es) for your APIC cluster. This is done by configuring the zCiscoAPICMgmtInterface property. The following options are available.

out-of-band (default)
in-band
static

Choosing out-of-band will cause Virtana to use the configured out-of-band (OOB) management addresses. In-band will cause Virtana to use the in-band management addresses. Choosing static will result in Virtana only using the provided address to manage the cluster and means that no failover to other controller nodes is possible. Static should only be used in situations where Virtana is accessing a controller node through NAT and wouldn't be able to access the other controller nodes via their out-of-band or in-band management addresses.

Minimum Permissions

The username and password provided when adding an APIC to Virtana must have the admin role for Virtana to successfully model and monitor the fabric. It is acceptable to use an admin read-only role as Virtana never performs writes.

To grant the user admin read-only permissions you must configure the user in the APIC portal to have both role admin and role read-only. If your APIC has a single role labeled read-only admin it will not work.

Limitations

The current release is known to have the following limitations.

Modeling of APIC is performed only once per Virtana modeling cycle which by default is 12 hours. This means it can be up to 12 hours before Virtana is aware of changes to the APIC configuration.
Service impact and root cause analysis with the compute domain only works when APIC is integrated with VMware vSphere. Not physical domains, Hyper-V, OpenStack or other integrations.

Configuration Properties

zCiscoAPICUsername: APIC username. Default is admin.
zCiscoAPICPassword: APIC password. Default is blank.
zCiscoAPICPort: APIC REST API (web interface) TCP port. Defaults to 443.
zCiscoAPICSSL: APIC REST API (web interface) SSL. Default is true.
zCiscoAPICHealthInterval: Polling interval for component health scores.
zCiscoAPICMgmtInterface: Management interface Virtana will use: out-of-band, in-band or static. Defaults to out-of-band.
zCiscoAPICIgnoreIds: List of ids to not model. Supports regular expressions. Ids can be APIC DNs or Virtana IDs.
zCiscoAPICIgnoreTypes: List of types to not model. Supports regular expressions. Types can be APIC class names or Virtana module names. Using APIC class names is preferable to avoid making unnecessary APIC API calls.

Device Classes

/Network/Cisco APIC

Modeler Plugins

zenoss.Cisco.APIC

Datasource Types

Cisco APIC Faults
Cisco APIC Health
Cisco APIC Stats

Event Classes

/Cisco APIC

Event Class Mappings

/Cisco APIC/Cisco APIC Fault Default Mapping

Virtana Analytics

This ZenPack provides additional support for Virtana Analytics. Perform the following steps to install extra reporting resources into Virtana Analytics after installing the ZenPack.

Copy analytics-bundle.zip from $ZENHOME/ZenPacks/ZenPacks.zenoss.CiscoAPIC/analytics/ on your Virtana server.
Navigate to Virtana Analytics in your browser.
Login as superuser.
Remove any existing Cisco APIC ZenPack folder.
1. Choose Repository from the View menu at the top of the page.
2. Expand Public in the list of folders.
3. Right-click on Cisco APIC ZenPack folder and choose Delete.
4. Confirm deletion by clicking OK.
Add the new Cisco APIC ZenPack folder.
1. Choose Server Settings from the Manage menu at the top of the page.
2. Choose Import in the left page.
3. Remove checks from all check boxes.
4. Click Choose File to import a data file.
5. Choose the analytics-bundle.zip file copied from your Virtana server.
6. Click Import.

You can now navigate back to the Cisco APIC ZenPack folder in the repository to see the following resources added by the bundle.

Dashboards

Fabric Health Dashboard

Reports

Fabric Pod Overall Health Report
Fabric Node Overall Health Report

Ad Hoc Views

Fabric Pod Overall Health View
Fabric Node Overall Health View

Topics

Fabric Pod Overall Health Topic
Fabric Node Overall Health Topic

Domains

Cisco APIC Domain

Topics can be used to create ad hoc views using the following steps. Topics are a layer on top of domains that are more focused on a certain type of data.

Choose Ad Hoc View from the Create menu.
Expand Public then Cisco APIC ZenPack.
Choose one of the topics.

Domains can also be used to create ad hoc views using the following steps.

Choose Ad Hoc View from the Create menu.
Click Domains at the top of the data chooser dialog.
Expand Public then Cisco APIC ZenPack.
Choose the Cisco APIC Domain domain.

Changes

1.3.1

Fix callhome MR-counting bugs: missing decommission/endpoint/monitored exclusions (ZEN-35651, ZEN-35652, and ZEN-35653)
Tested with Virtana Service Observability (formerly Zenoss Cloud), Virtana Service Dynamics 6.9.0 and Service Impact 5.7.2

1.3.0

Fix of excessive topSystem API calls cause performance problems. (ZPS-5140, ZPS-7150)
Fix for Token timeout. (ZPS-6628)
Tested with Zenoss 6.4.1- 6.5.0, Virtana Service Observability and Impact 5.5.1

1.2.3

Fix controllers appearing with an invalid role of "8". (ZPS-2546)
Fix potential "health_dn" KeyError in health datasource. (ZPS-2380)
Mask APIC credentials in debug log. (ZPS-616)

1.2.2

Fix modeling failure related to unexpected node roles. (ZPS-1930)

1.2.1

Collect health data individually and dynamically. (ZEN-22303)
Tested against APIC 1.0(3f), 1.2(1k), 1.2(2h).

1.2.0

Add attached host, server, network interface Impact relationships.

1.1.0

Add OpenStack integration.

1.0.5

Add "Peer Node" and "Peer Interface" properties to physical interfaces.
Remove potentially cyclic EPG impact relationships. (ZEN-19310)

1.0.4

Fix flooding APIC with aaaLogin and aaaRefresh calls. (ZEN-17881)
Remove newlines from dim_ciscoapic_client_endpoint.ip. (ZEN-17914)
Add "Firmware Status" property to fabric nodes.

1.0.3

Fix duplicate of "Node Overall Health" graph on upgrade. (ZEN-17728)
Add "Usage" property to physical interfaces.
Add zCiscoAPICIgnoreIds and zCiscoAPICIgnoreTypes properties.
Add client endpoint modeling.

1.0.2

Fix handling of stats and events when APIC has a timezone offset. (ZEN-16582)
Add more debug logging during modeling.
Fix potential "TypeError" in UI before stats are collected. (ZEN-16684)
Added zCiscoAPICMgmtInterface property. Support cluster fail-over. (ZEN-17385)
Added several properties to Fabric Node and Contract modeling. (ZEN-17393)
Added Cisco APIC Properties datasource type.
Added service cluster properties: device package, vendor, model, version. (ZEN-17532)
Fixed status field in details panel for all components. (ZEN-17536)
Added physical interface property: operational state. (ZEN-17540)

1.0.1

Fix "Not valid JSON" errors. (ZEN-16194)
Fix "KeyError: 'None'" modeling error. (ZEN-16314)

1.0.0

Initial release.

In this section:
