Cisco UCS Central

ZenPacks.zenoss.CiscoUCSCentral

This ZenPack provides support for monitoring the Cisco UCS Central Infrastructure via the Cisco UCS Central XML API.

Applications Monitored: Cisco UCS Central (1.3)

Releases

Version 1.3.4

  • Released on 2024/05/14

  • Requires PythonCollector ZenPack, Cisco UCS ZenPack

  • Compatible with Zenoss 6.x and Virtana Service Observability

Version 1.3.3

  • Released on 2019/10/04

  • Requires PythonCollector ZenPack, Cisco UCS ZenPack

  • Compatible with Zenoss 6.x and Virtana Service Observability

Features

This ZenPack adds the following features to Virtana.

  • Initial discovery and continual update of relevant components.

  • Event management. Integration of Cisco UCS Central faults into Virtana event system.

  • Event subscription. Automatic updates for predefined components.

Discovery

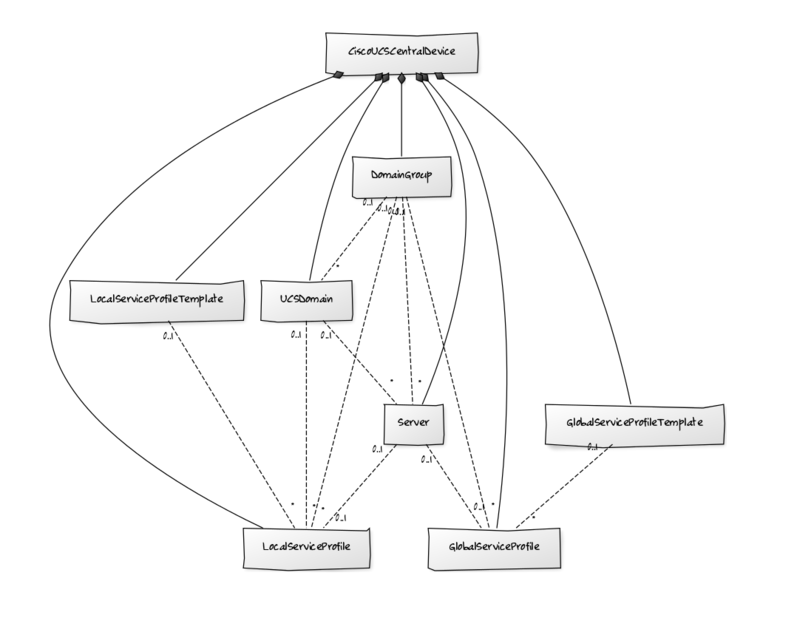

Model Diagram

The following components will be automatically discovered. The properties and relationships will be periodically remodeled to provide automatically up-to-date monitoring when the system configuration changes.


UCS Central Device

Cisco UCS Central Device

  • Properties: Name, UCS Distinguished Name (DN), Mode, Uptime, Available Servers, Polling Interval, Total Servers

  • Relationships: Domain Groups, UCS Domains, Servers, Global Service Profiles, Local Service Profiles, Global Service Profile Templates, Local Service Profile Templates

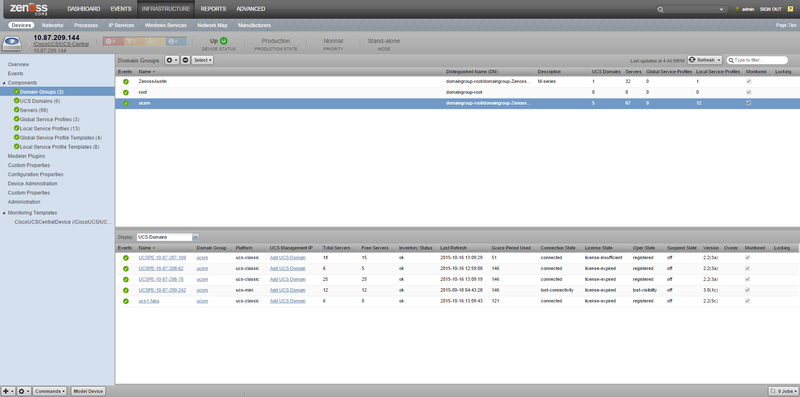

Domain Groups

Domain Groups

  • Properties: Name, Distinguished Name (DN), Description

  • Relationships: Cisco UCS Central Device, UCS Domains, Servers, Global Service Profiles, Local Service Profiles

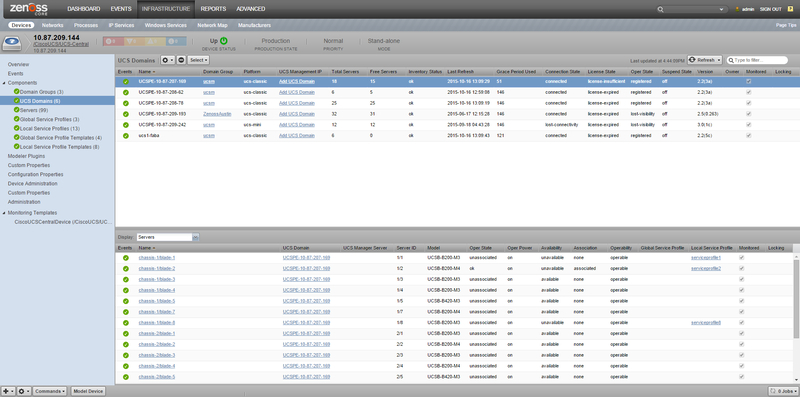

UCS Domains

UCS Domains

  • Properties: Name, Domain Group, Platform, UCS Management IP, Total Servers, Free Servers, Inventory Status, Last Refresh, Grace Period Used, Connection State, License State, Oper State, Suspend State, Version, Owner

  • Relationships: Cisco UCS Central Device, Domain Groups, Servers, Local Service Profiles

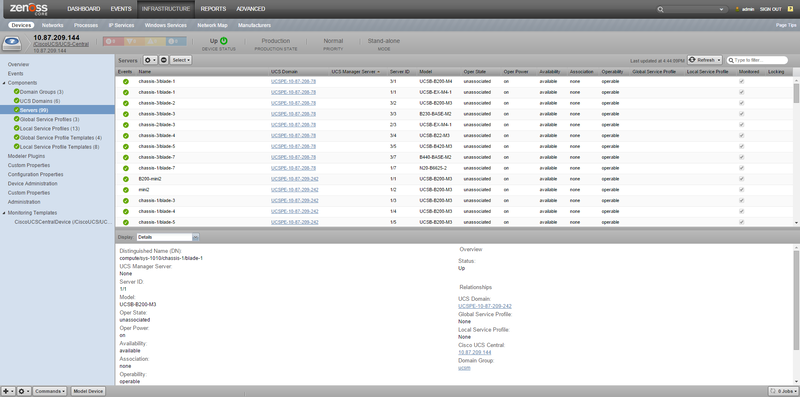

Servers

Servers

  • Properties: Name, UCS Manager Server, Server ID, Model, Oper State, Oper Power, Availability, Association, Operability

  • Relationships: Cisco UCS Central Device, Domain Groups, UCS Domains, Global Service Profiles, Local Service Profiles

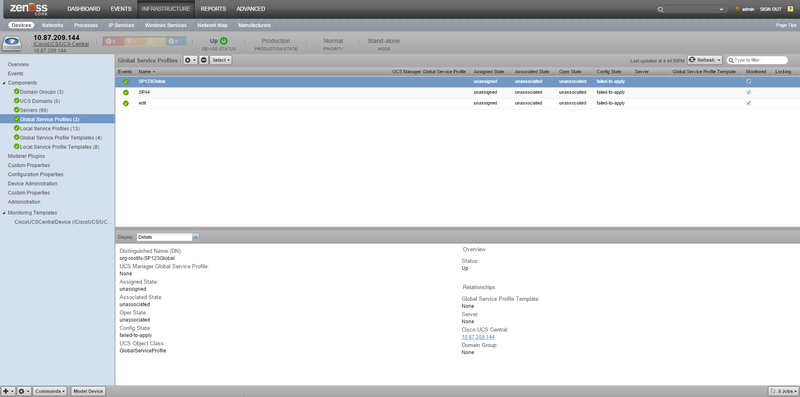

Global Service Profiles

Global Service Profiles

  • Properties: Name, UCS Manager Global Service Profile, Assigned State, Associated State, Oper State, Config State

  • Relationships: Cisco UCS Central Device, Domain Groups, Servers, Global Service Profile Templates

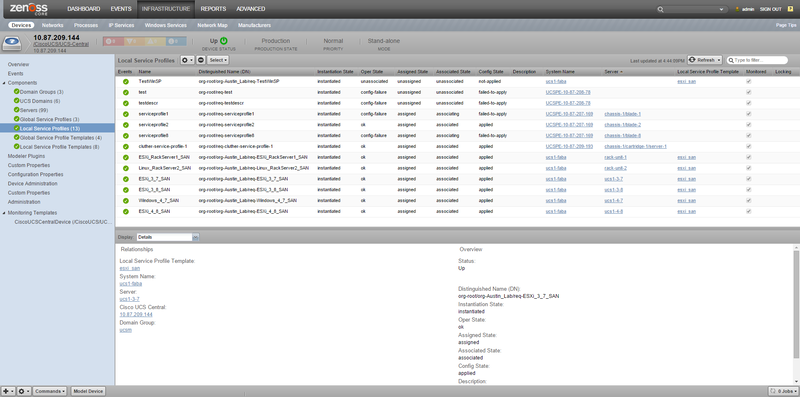

Local Service Profiles

Local Service Profiles

  • Properties: Name, Distinguished Name (DN), Instantiation State, Oper State, Assigned State, Associated State, Config State, System Name, Description

  • Relationships: Cisco UCS Central Device, Domain Groups, UCS Domains, Servers, Local Service Profile Templates

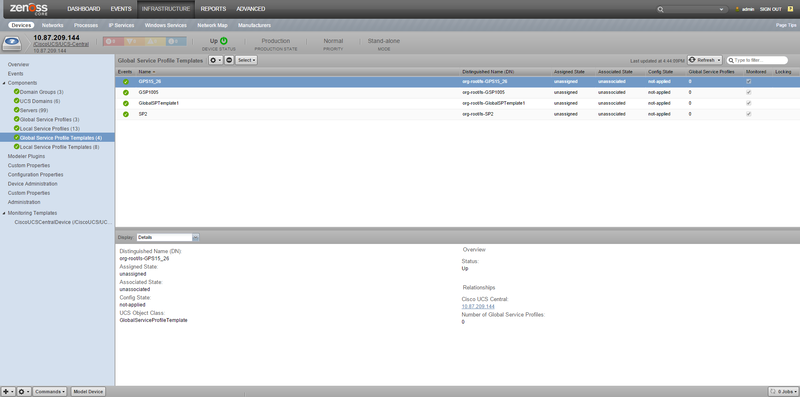

Global Service Profile Templates

Global Service Profile Templates

  • Properties: Name, Distinguished Name (DN), Assigned State, Associated State, Config State

  • Relationships: Cisco UCS Central Device, Global Service Profiles

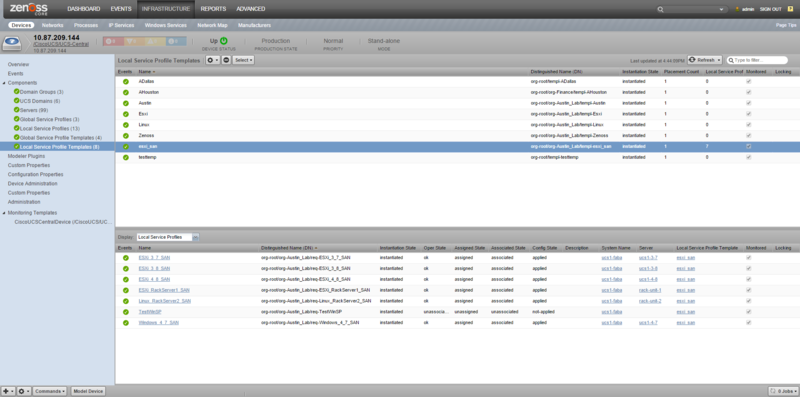

Local Service Profile Templates

Local Service Profile Templates

  • Properties: Name, Distinguished Name (DN), Instantiation State, Placement Count

  • Relationships: Cisco UCS Central Device, Local Service Profiles

Event Management

Cisco UCS Central Faults

Virtana periodically polls the UCS Central for faults and creates Virtana events when they occur. The UCS Central fault life-cycle closely matches that of a Virtana event. This means that corresponding Virtana events will automatically clear when their UCS Central fault counterparts clear.

Note: UCS Central fault events may reoccur in Virtana if they're closed in Virtana, but not cleared on the UCS Central. For this reason it is recommended that the UCS Central fault events are acknowledged in Virtana instead of closed until they are actually resolved on the UCS Central system.

Note: Virtana attempts to set the timestamp on fault events to the timestamp the UCS Central reported their occurrence instead of the time that Virtana collected them. For this reason it is recommended that both your UCS Centrals and Virtana servers keep accurate time.

The following fields will be populated for each event.

Standard Event Fields

  • device: UCS Central device in the /Devices/CiscoUCS/UCS-Central device class.

  • component: Virtana component related to the fault.

  • count: Occurrences or occur for the UCS Central fault.

  • eventKey: UCS Central distinguished name (DN) for the fault.

  • eventClassKey: cisco-ucsc-fault-code where code is the UCS Central fault code.

  • eventGroup: cisco-ucsc-faultInst.

  • summary: Description or descr for the UCS Central fault.

  • severity: Mapped from the UCS Central severity for the fault using the following table.

    • UCS Central cleared = Virtana Clear

    • UCS Central info = Info

    • UCS Central condition = Info

    • UCS Central warning = Warning

    • UCS Central minor = Warning

    • UCS Central major = Error

    • UCS Central critical = Critical

The following additional fields and potentially more will also be populated for each event. These are the fields native to an Cisco UCS Central fault. If a fault occurs that has other fields, those fields will be added with the same cisco.ucsc prefix.

Additional Cisco UCS Central Fault Event Details

  • cisco.ucsc.ack

  • cisco.ucsc.cause

  • cisco.ucsc.code

  • cisco.ucsc.created

  • cisco.ucsc.descr

  • cisco.ucsc.dn

  • cisco.ucsc.highestSeverity

  • cisco.ucsc.id

  • cisco.ucsc.lastTransition

  • cisco.ucsc.occur

  • cisco.ucsc.origSeverity

  • cisco.ucsc.prevSeverity

  • cisco.ucsc.rule

  • cisco.ucsc.severity

  • cisco.ucsc.srcDme

  • cisco.ucsc.tags

  • cisco.ucsc.type

Cisco UCS Central Event Subscription

Virtana supports Event Subscription feature of Cisco UCS Central. It provides a possibility to add/remove/update Virtana components basing on the incoming events from Cisco UCS Central.

The following components are affected by this feature:

  • UCS Domain

  • Global Service Profile

  • Local Service Profile

  • Global Service Profile Template

  • Local Service Profile Template

For UCS Domain component we accept updates only for the following attributes:

  • Connection State

  • Oper State

Please check Cisco UCS Central XML API for more details.

Adding a Cisco UCS Central Endpoint

Use the following steps to start monitoring a Cisco UCS Central using the web interface.

  1. Navigate to the Infrastructure page.

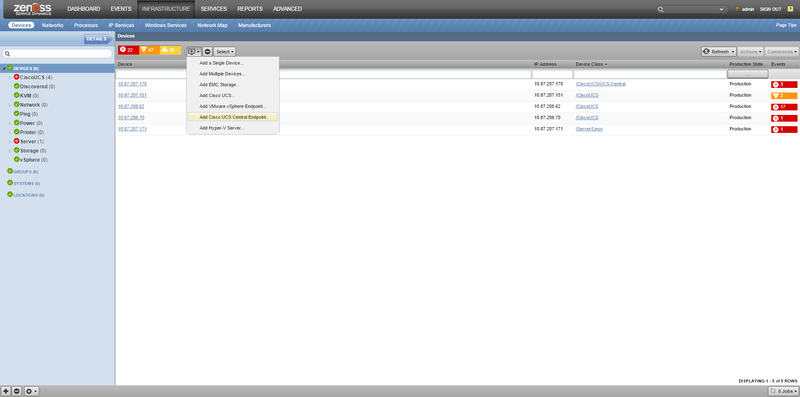

    Add Menu Item

  2. Choose Add Cisco UCS Central Endpoint.. from the add device button.

  3. Fill out the form.

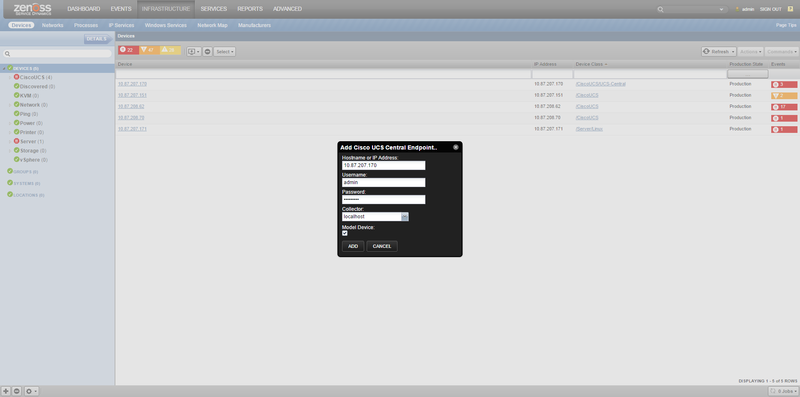

    Add Dialog

    • Hostname or IP Address must be resolvable and accessible from the collector server chosen in the Collector field.

    • Username and Password are the same as what you'd use to login the Cisco UCS Central's web interface.

    • Click ADD.

Alternatively you can use zenbatchload to add Cisco UCS Central Endpoints from the command line. To do this, you must create a file with contents similar to the following. Replace all values in angle brackets with your values minus the brackets. Multiple Cisco UCS Centrals can be added under the same /Devices/CiscoUCS/UCS-Central section.

''/Devices/CiscoUCS/UCS-Central''
my-ucsc setManageIp='192.168.0.1', zCiscoUCSCentralUsername='admin', zCiscoUCSCentralPassword='changeme'

You can then load the devices(s) with the following command.

zenbatchload <filename>

Installed Items

Installing this ZenPack will add the following items to your Virtana system.

Configuration Properties

  • zCiscoUCSCentralUsername: UCS Central username. Default is admin.

  • zCiscoUCSCentralPassword: UCS Central password. Default is blank.

  • zCiscoUCSCentralPort: UCS Central XML API TCP port. Defaults to 443.

  • zCiscoUCSCentralUseSSL: UCS Central XML API SSL. Default is true.

Device Classes

  • /Devices/CiscoUCS/UCS-Central

Modeler Plugins

  • zenoss.ucsc.CiscoUCSCentralInstanceMap

Datasources

Name

Type

Plugin name

faults

Cisco UCS Central Faults

FaultsDataSourcePlugin

modelChangeEvent

Python

EventSubscribeDSPlugin

Event Classes

  • /Events/CiscoUCSCentral/Fault

  • /Events/CiscoUCSCentral/ModelChangeEvent

Event Class Mappings

  • /Events/CiscoUCSCentral/Fault/Cisco UCS Central Fault Default Mapping

  • /Events/CiscoUCSCentral/ModelChangeEvent/Cisco UCS Central Model Change Event Default Mapping

Changes

1.3.4

  • Make CiscoUCSCentral ZenPack compatible with Ubuntu-based CZ 7.2.0 (ZPS-8859)

1.3.3

  • Fix import errors in CiscoUCSCentral due to removed dependencies in CiscoUCS 3.0.2 (ZPS-6427)

1.3.2

  • Fix import errors from CiscoUCS 3.0.0. (ZPS-5865)

1.3.1

  • Add Cisco UCS Central to multi-device add wizard. (ZPS-1421)

  • Fix templates showing in service profiles list and vice versa. (ZPS-668)

1.3.0

  • Improved session handling with the UCS Central XML API. (ZEN-26322)

1.2.0

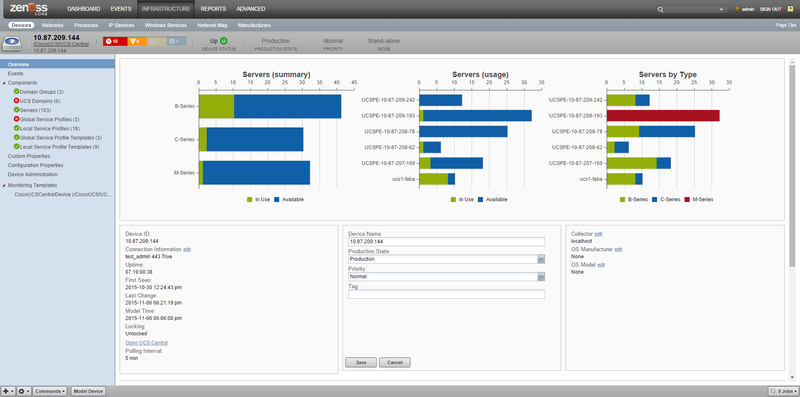

  • Show servers by type chart on overview. (ZEN-20849)

1.1.0

  • Remove unused "Software" from UCS Central view. (ZEN-18673)

  • Reduce number of UCS Central API sessions used. (ZEN-18959)

  • Add API support for launch-in-context from UCS Central UI.

  • Prevent adding duplicate UCS Central instance. (ZEN-19299)

  • Remove host firmware packages support. (ZEN-19890)

  • Add model number for servers. (ZEN-19893)

  • Add domain group column to domains grid. (ZEN-20186)

  • Combine service profile usages with service profiles. (ZEN-19891)

  • Updates to DynamicView support. (ZEN-20183)

  • Prevent adding invalid text as a UCS Central instance. (ZEN-20520)

1.0.0

  • Initial release.
