Cloud View

ZenPacks.zenoss.CloudView

This ZenPack defines reports for Cloud related technologies including Serverless functions. The following features are added by this ZenPack:

  • Reports with graphs for serverless function usage from AWS, Azure, GCP:

    • Total functions counts per provider (AWS, Azure, and GCP)

    • Top Functions by Invocation Count

    • Top Functions by Average Duration

    • Top Functions by Errors Rate

    • Top Accounts by Functions Count

Support

This ZenPack is developed and supported by Virtana. Enterprise support is available to Virtana customers with an active subscription or support agreement. ZenPacks are available at delivery.zenoss.com. To request more information about this or any other ZenPack, contact Virtana.

Releases


Version 1.0.0

  • Released: 2019-10-23

  • Compatible with Zenoss 6.3+ and Virtana Service Observability

  • Requires: ZenPackLib

Requirements

At very least, one of the following ZenPacks, should be installed and modeled with related Cloud Functions:

  • Microsoft.Azure ZenPack >= 2.1.0

  • GoogleCloudPlatform ZenPack >= 1.1.0

  • AWS ZenPack >= 5.0.0

Usage

In order to generate a report, relevant configuration options have to be defined. These options include:

  • Providers: AWS, GCP, Azure. Functions of which providers will be displayed on graphs. It can be selected either one or more.

  • Time Range: Metrics will be collected to display graphs for the given time period selected. Time can be selected either from a predefined date ranges or a custom time range.

Troubleshooting

General troubleshooting steps:

  1. Verify that at least one device of provider (AWS, GCP, Azure) is modeled with Cloud Functions.

  2. Verify that Cloud Functions metrics are successfully collecting (especially: invocations, execution time, and errors).

Serverless Report

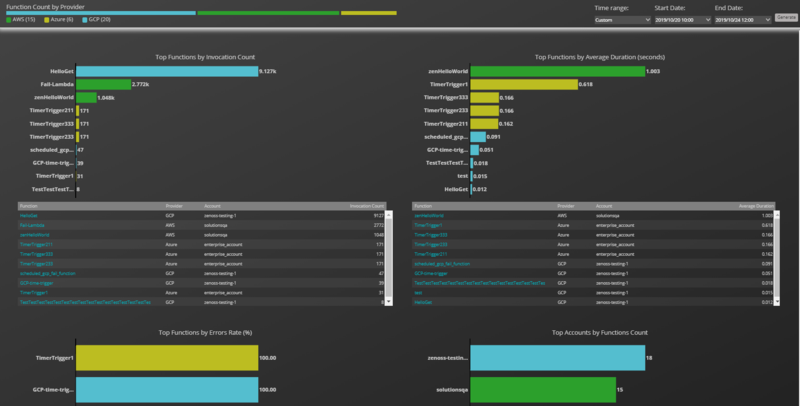

The following graphs as a report are included with this ZenPack. It can be found in the Cloud View report organizer.

  • Total functions counts per provider (AWS, Azure, and GCP).

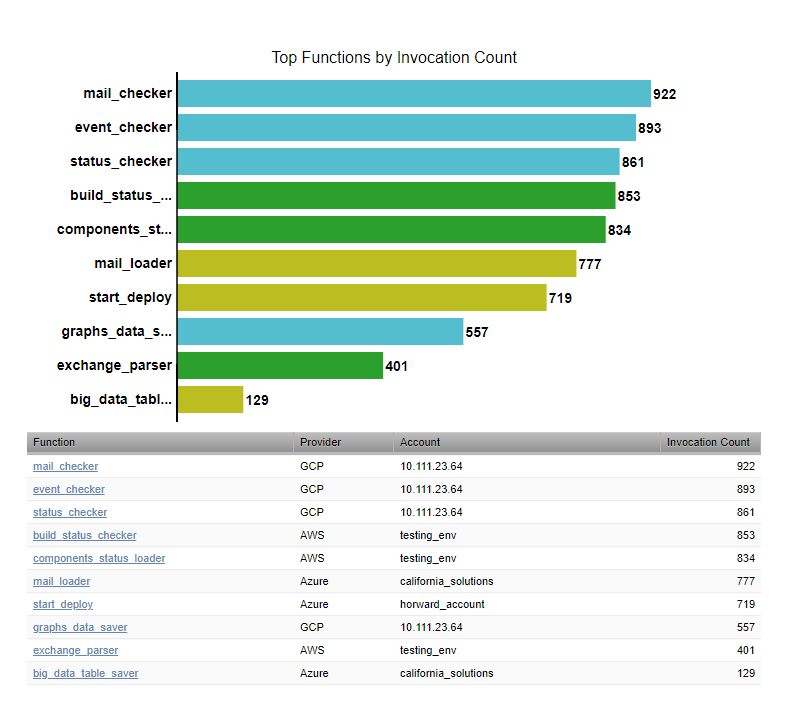

  • Top Functions by Invocation Count: Shows top 10 functions by invocation count, with the information about provider and account of function.

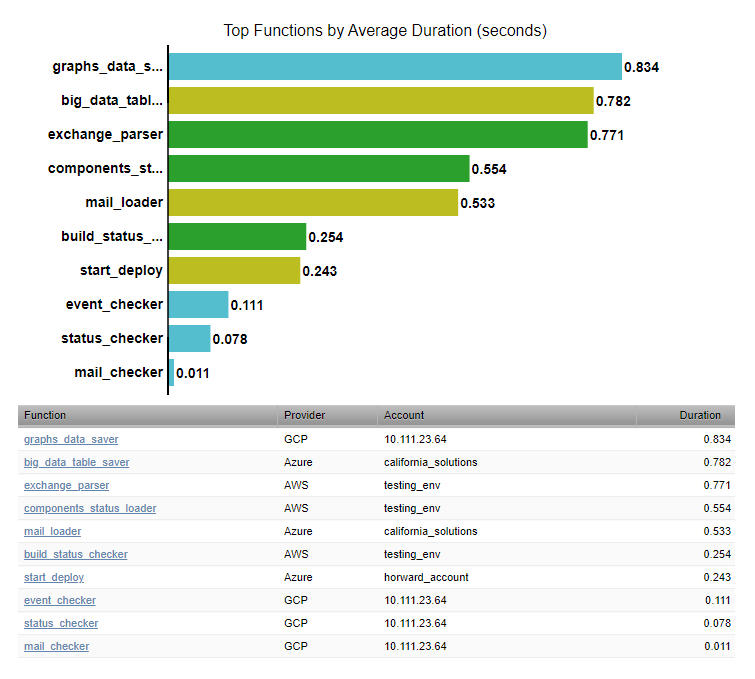

  • Top Functions by Average Duration: Shows top 10 functions by average duration, with the information about provider and account of function. Units of time - seconds.

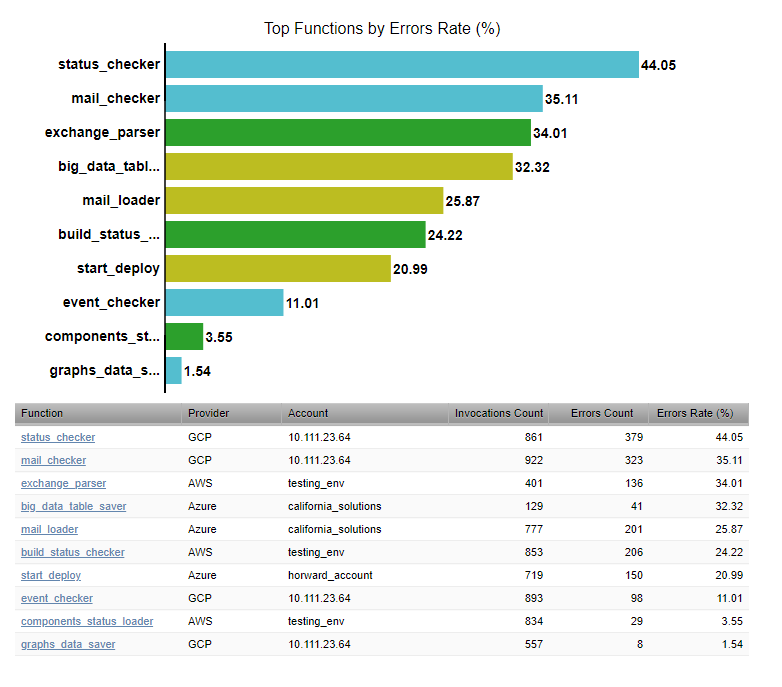

  • Top Functions by Errors Rate: Shows top 10 functions by error rates, with the information about provider, account, errors and invocations count of function. Units of rate - percent.

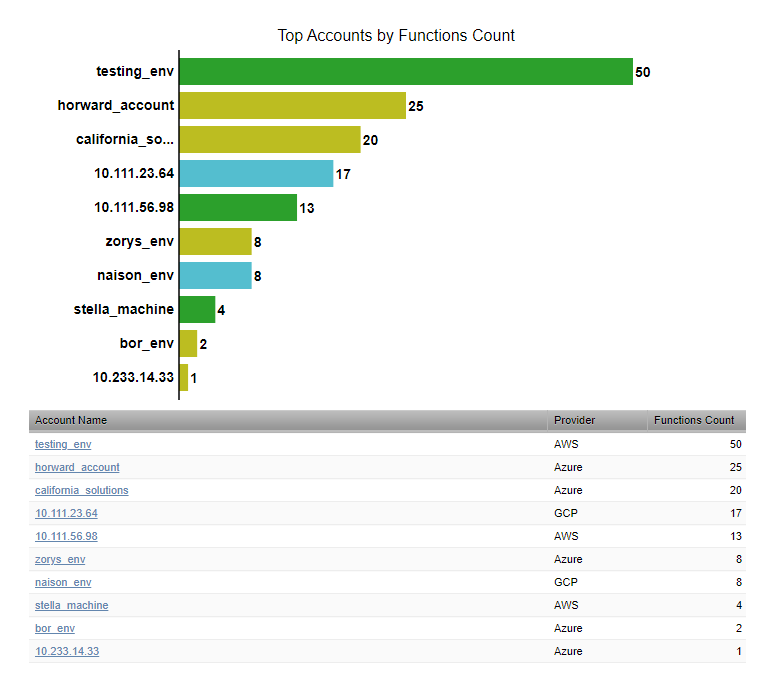

  • Top Accounts by Functions Count: Shows top 10 accounts by functions count, with the information about the provider of account.


Changes

1.0.0

  • Initial release.

  • Tested with Zenoss 6.4.1 and Virtana Service Observability.
