Interface Utilization
Shows the traffic through all network interfaces monitored by Collection Zone.

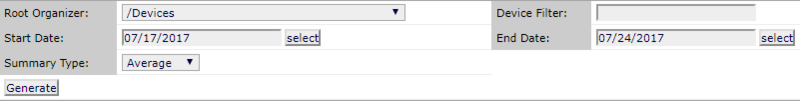

Report filtering
- Root Organizer
The device class to use for filtering. The default is
/Devices.- Device Filter
Enter the name of the device to filter by.
- Start Date / End Date
The first and last dates of the range of dates to include in the report. To select a date from a calendar, click Select. The default range is the week ending with the current date.
- Summary Type
Possible values: Average, Maximum, Minimum, and Last.
To generate or refresh the report, click Generate.
Note
If you export the report by clicking Export all, be sure to format the percentage columns to show percentages instead of decimal values.
This report uses data point aliases. To add data points to a report, add the alias, and then ensure the values return in the expected units.
Alias | Expected Units |
|---|---|
| bytes/sec |
| bytes/sec |
Report contents
Column | Content |
|---|---|
Device | Name of the device based on the filter parameters selected. |
Interface | Name of interface. Click the link to be taken to the Device Components page. |
Speed | The interface's rated bandwidth, in bits per second |
Input | Average traffic coming in to the interface, in bits per second |
Output | Average traffic going out of the interface, in bits per second |
Total | Total average traffic across the interface, in bits per second |
% Util | Percentage of the interface's bandwidth consumed |
