CPU Utilization
Shows monitored devices, load averages, % utilization, and forecasted exhaustion. You can customize start and end dates.

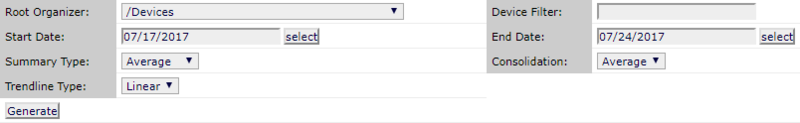

Report filtering
- Root Organizer
The device class to use for filtering. The default is
/Devices.- Device Filter
Enter the name of the device to filter by.
- Start Date / End Date
The first and last dates of the range of dates to include in the report. To select a date from a calendar, click Select. The default range is the week ending with the current date.
- Summary Type
Possible values: Average, Maximum, Minimum, and Last.
- Consolidation
Possible values: Average and Max.
- Trendline Type
Projection algorithm used in the Forecasted % Util Exhaustion calculation. Possible value: Linear.
To generate or refresh the report, click Generate.
Note
If you export the report by clicking Export all, be sure to format the percentage columns to show percentages instead of decimal values.
This report uses data point aliases. To add data points to a report, add the alias, and then ensure the values return in the expected units.
Alias | Expected Units |
|---|---|
| Processes |
| Percent |
Report contents
Column | Content |
|---|---|
Device | Name of the device based on the filter parameters selected. |
Load Avg | Average load on the device. |
% Util | % CPU utilization on the device |
Forecasted % Util Exhaustion | The amount of time before the exhaustion threshold will be breached. |
